Solar, Power & Energy Storage
we specialize in car electronics technology & development.. more
Portable Power




01_[Ecoboxx]_EB500 Pro- Main2
02_[Ecoboxx]_EB500 Pro - Wireless
03_[Ecoboxx]_EB700_Composition
04_EB500 Pro_Lifestyle01
![01_[Ecoboxx]_EB500 Pro- Main2](http://www.provistahk.com/wp-content/uploads/01_Ecoboxx_EB500-Pro-Main2.png)
![02_[Ecoboxx]_EB500 Pro - Wireless](http://www.provistahk.com/wp-content/uploads/02_Ecoboxx_EB500-Pro-Wireless.png)
![03_[Ecoboxx]_EB700_Composition](http://www.provistahk.com/wp-content/uploads/03_Ecoboxx_EB700_Composition.png)

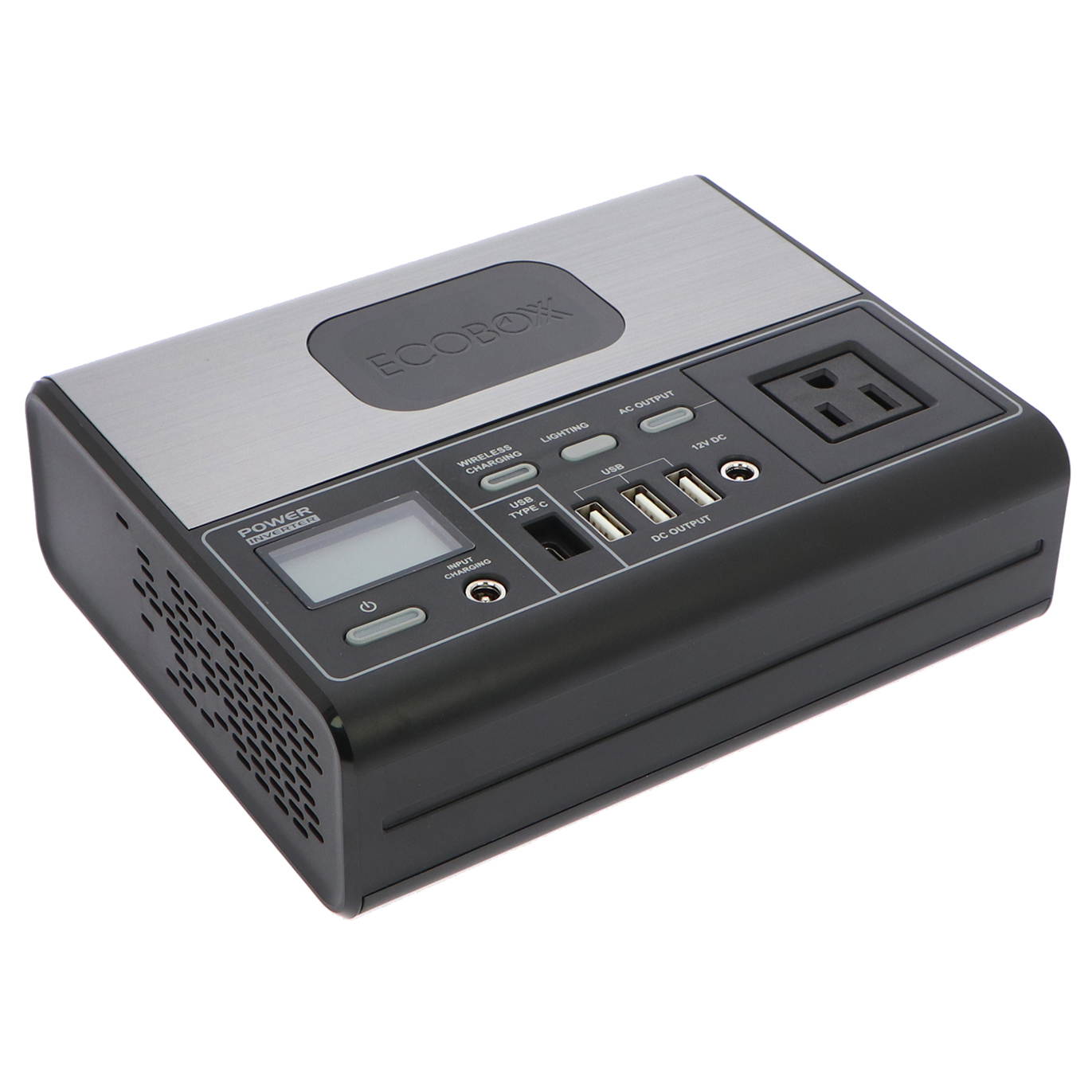

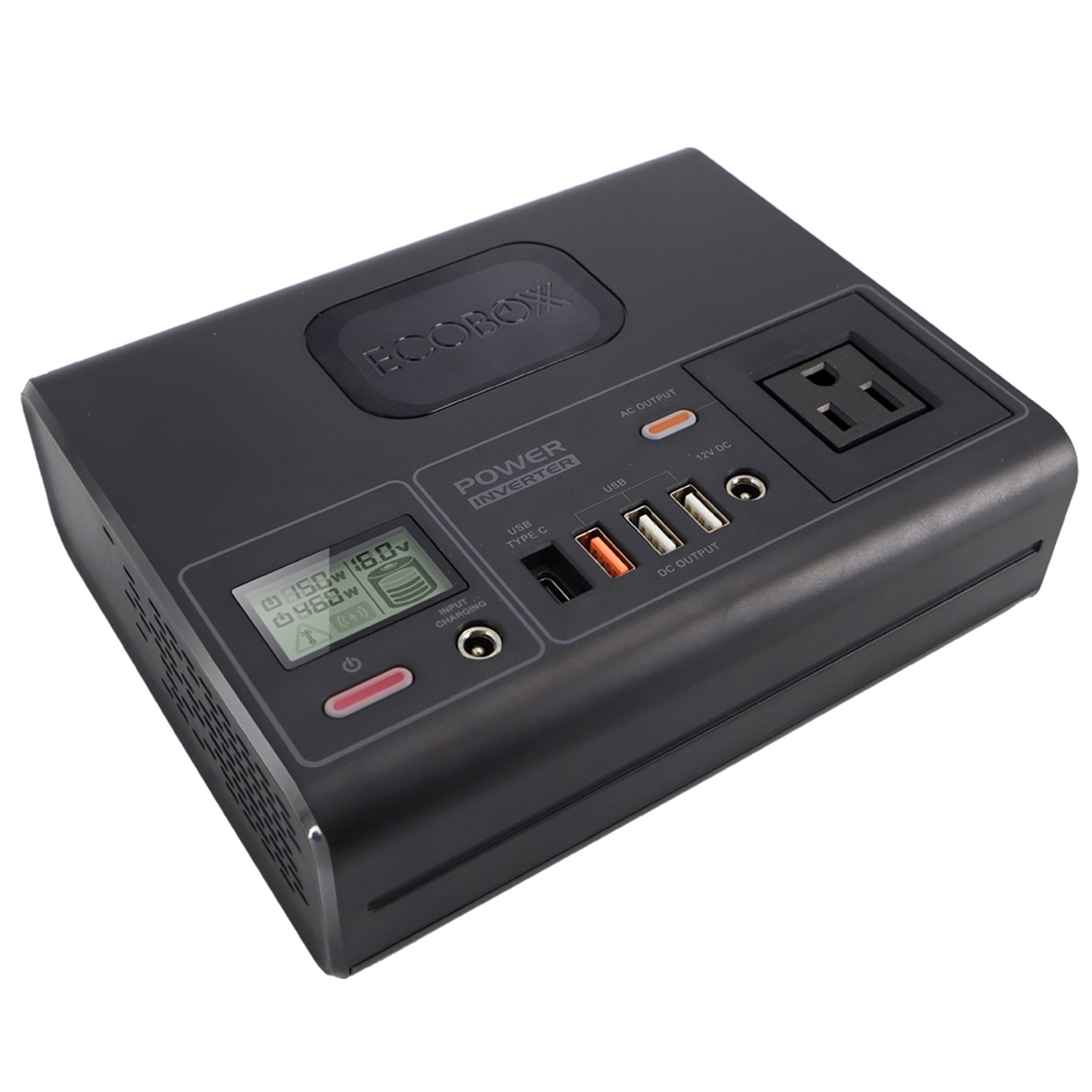

ECOBOXX EB500Pro / EB700
EB500Pro
- 600W PSW Inverter
- 12.8V LiFePO4,40Ah, 512Wh
- LCD screen with Backlight
- Area Light (Optional)
- 15W Wireless charging
- USB OUTPUT:
- 1x USB-C PD 5-20V 65W (IN/OUT)
- 1x USB-C PD, 5/9/12V 30W Max.
- 2x USB-A QC, 5/9/12V,18W Max.
- 2x USB-A, 5V/2.4A Max.
- DC OUTPUT:
- 2x 6mm DC Jack, 12V 6A Max.
- 1x Car Cig.Socket, 12V 12A Max.
- 1x Anderson port 12V 25A Max.
- AC OUTPUT:
- 2x AC Socket, 600W PSW Output
- INPUT:
- 1x Mini Anderson 10-60VDC 230W max.
- 1x 8mm DC Jack 15-24V 5A 100W max.
- 1x USB-C PD 5-20V 65W (IN/OUT)
EB700
- 600W PSW Inverter
- 25.2V Li-ion,27.5Ah, 693Wh
- LCD screen with Backlight
- USB OUTPUT:
- 1x USB-C PD 5-20V 100W Max.
- 1x USB-C PD, 5/9/12V 30W Max.
- 2x USB-A QC, 5/9/12V 18W Max.
- 2x USB-A, 5V/2.4A Max.
- DC OUTPUT:
- 2x 6mm DC Jack, 13.5V 6A Max.
- 1x Car Cig.Socket, 13.5 12A Max.
- AC OUTPUT:
- 2x AC Socket, 600W PSW Output
- INPUT:
- 1x Mini Anderson 10-30VDC 15A max.
- 1x 8mm DC Jack 31-33VDC 8A max. controller 3



1EB150S_2
1EB150P_2
03



ECOBOXX 150S / 150P
- 120W MSW inverter
- 146Wh Lithium battery pack
- 2 * USB output port with 5V 2.1A
- 1 x USB QC 3.0 quick charge
- 1 x type C PD output port support
- 5V / 9V with 18W max
- Build in MPPT solar controller 3A
- Build in Buck boost charging
- circuity and support
- 12V input from Car cig output socket.
- LCD display
- Product Dimension : 181 X 144 X 52 mm
- Weight : 1.7kg
- 10W QI Wireless charging (150P VER ONLY)
- COB light Bar (150P VER ONLY)



2EB300_1
2EB300_2
03

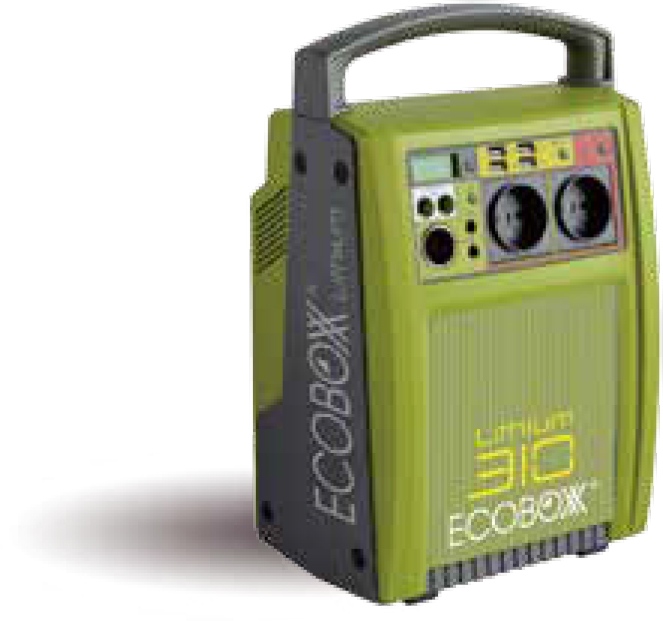

ECOBOXX 310
- True Sine Wave 200W
- AC outlet x 2
- 5VDC USB port x 4
- 12VDC 5.5mm DC jack Output x 2
- 12VDC Cigarette socket Output x 1
- Charging port Input x 2
- LCD Display
- Battery capacity :
- 288W / 26Ah Lithium Battery
- Optional Solar Panel
- of 20Wp or 30 Wp
- Dimensions : 221 X 150 X 359 mm
- Weight : 4.7kg
Solar Controller


3SCE1
3SCE2

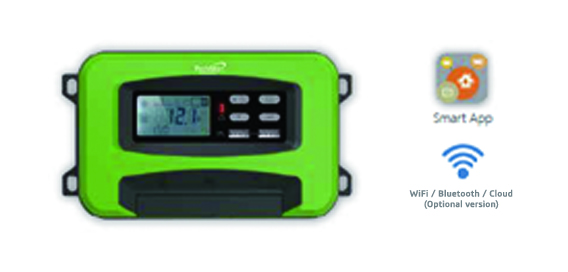

SCE series
- With the successful of the ISC series, the newly developed SCE series are now available for advanced customer.
- The wider input voltage range, fan-less industrial design and wifi module with cloud server are the main advantage of this new product line.
- Battery, charging and load level status real time monitoring
- Memory history mode display
- Android / IOS operation system
- Connect the controller with the smart device
- Support both Android / IOS
- Real time monitoring the input / output level and the performance of the solar controller
- Historical data storage in Cloud server
- Remote control the output load on / off via the mobile APP
- Fan-less Design
- USB output port
Solar Controller Product Detail
Model | SCE10 | SCE30 | SCE50 | SCP30 | SCP50 |
Product photo | ![]() | ![]() | ![]() | ![]() | ![]() |
Type | PWM | PWM | PWM | MPPT | MPPT |
System current | 10A | 30A | 50A | 30A | 50A |
PV input voltage | 50V | 100V | 100V | 100V | 135V |
PV input power | 12V : 150W 24V : 300W | 12V : 450W 24V : 900W | 12V : 750W 24V : 1500W 36V : 2250W 48V : 3000W | 12V : 450W 24V : 900W | 12V : 700W 24 / 36 / 48V : 1400W |
Battery voltage | 12V / 24V | 12V / 24V | 12V / 24V / 36V / 48V | 12V / 24V | 12V / 24V / 36V / 48V |
USB output | 1 | 2 | 2 | 2 | 2 |
Battery | SLA / LiFeP04 | SLA / LiFeP04 | SLA / LiFeP04 | SLA / LiFeP04 | SLA / LiFeP04 |
Display | LED | LCD | LCD | LCD | LCD |
Wifi module | Nil | Optional | Optional | Optional | Optional |
Model | ISC1000 | ISC1510 | ISC1520 | ISC3010 | ISC3020 |
Product photo | ![]() | ![]() | ![]() | ![]() | ![]() |
Type | PWM | PWM | PWM | PWM | PWM |
System current | 10A | 15A | 15A | 30A | 30A |
PV input voltage | 29V | 29V | 29V | 29V | 45V |
PV input power | 150W | 225W | 225W | 450W | 450W/ 900W |
Battery voltage | 12V | 12V | 12V | 12V | 12V/ 24V |
USB output | Nil | Nil | Nil | Nil | Nil |
Battery | SLA | SLA | SLA | SLA | SLA |
Display | LED | LED | LCD | LCD | LCD |
Wifi module | Nil | Nil | Nil | Nil | Nil |
Model | ISC3030 | ISC5030 | ISC3042 | ISC5040 |
Product photo | ![]() | ![]() | ![]() | ![]() |
Type | PWM | PWM | MPPT | MPPT |
System current | 30A | 50A | 30A | 50A |
PV input voltage | 45V | 50V | 60V | 95V |
PV input power | 450W/ 900W | 800W/ 1600W | 380W/ 720W | 12V : 650W 24/36/48V : 1300W |
Battery voltage | 12V/ 24V | 12V/ 24V | 12V/ 24V | 12V/ 24V/ 36V/ 48V |
USB output | Nil | Nil | Nil | Nil |
Battery | SLA | SLA | SLA | SLA |
Display | LCD | LCD | LCD | LCD |
Wifi module | Nil | Nil | Nil | Nil |
